| Description
Novus 30 usually referred to in the trade as Novus Supra is a top
quality compressed synthetic fibre sheet material. It
consists of a blend of plyarmid and inorganic fibres with a superior
nitrile rubber binder.
Colour
Orange.
Service
Nous Supra is a general purpose material

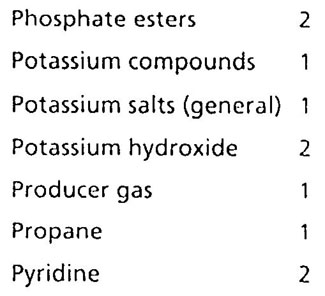

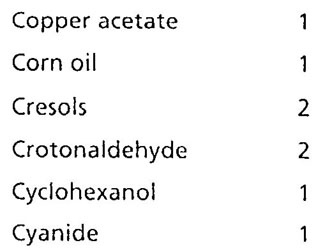

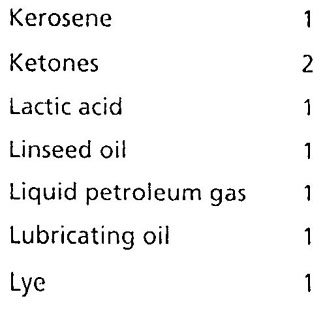

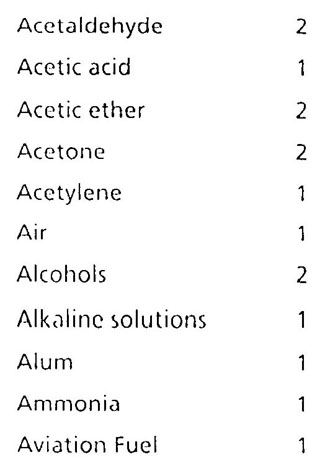

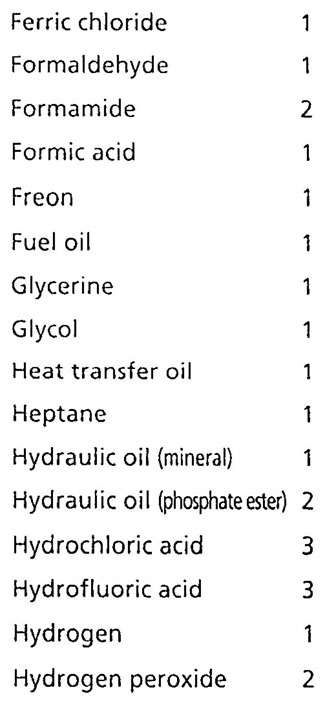

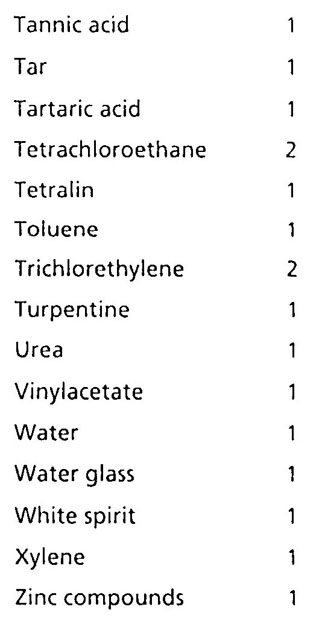

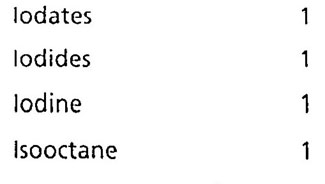

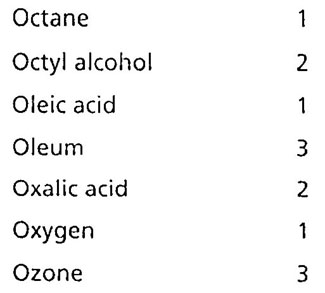

suitable for use applications involving hot and cold water, steam. oils,
fuels, gases and a wide range of general chemicals.
Maximum short term service temperature 400
Deg Celsius.
Maximum continuous service temperature 250
Deg Celsius.
Maximum operating temperature for
steam 200 Deg Celsius.
*The operating
temperature for non asbestos sheet material is related to the thickness
of material selected. Thinner materials offer better temperature
and pressure properties.
Approvals
DIN.DVGW Reg no 93.01
e 845 (According to DIN 3535 Part 6).
Gas applications.
Complies with the
requirements of BS7531 Grade Y Specification.
WRC Approval No. 9508502
Availability
Thickness Range : 0.4mm -
3.0mm
Standard sheet sizes : 2.0m
x 2.0m, 2.0m x 1.5m, 2.0m x 1.0m, 1.5m x1.5m,1.5m x 1.0m.
Standard roll sizes : Up to
a maximum size of 6.0m x 2.0m.
Available with fine mild
steel wire mesh reinforcement : Novus Supra Metallic.
Or Gauze wire insertion :
Novus Supra GWI.
Also available with
anti-stick coating or graphite coating.
|
TYPICAL PHYSICAL
PROPERTIES |
| Thinkness |
- |
1.5mm |
| Density |
- |
2.0g/cc |
| Tensile Strength |
ASTM F152 |
12 Mpa |
| Compression |
ASTM F36 |
9% |
| Recovery |
ASTM F36 |
50% |
| Residual stress |
BS 7531
DIN 52913 |
23Mpa
29Mpa |
| Gas Leakage |
BS7531 |
0.5g/cc |
| ASTM Oil no 1 |
Thickness increase |
2.0% |
| ASTM Oil no 3 |
Thickness increase |
5.0% |
| ASTM FUEL B |
Thickness increase |
4.0% |
As the company's products
are used for a multiplicity of purposes and as the company has no
control over the method of their application or use, the company
excludes all conditions or warranties, expressed or implied by statute or
otherwise as to their products and/or their fitness for any particular
purpose. Any technical co-operation between the company and the customer
is given for the customers assistance only and without liability on the
part of the company. |
